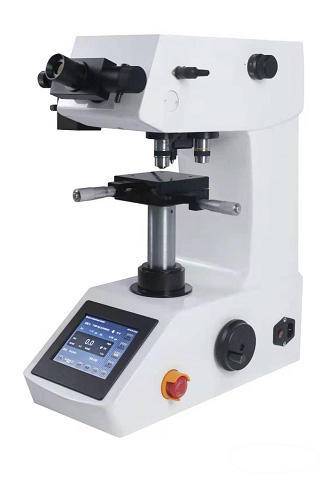

Digital Micro Vickers Hardness Tester VH1010A
Click to Enlarge

MicroStar MicoVicky VH1010A Vickers Hardness Tester is equiped with auto hardness conversion to other scales, the depth of hardened layer can be calculated automatically. Automatic loading, dwelling and unloading during testing process, simple operation, no operator error. The optical system has a clear image indentation to improve the accuracy of measurement.

 Application: Carborized layer's, Ceramics, Steel, non-ferrous metals, thin plates, electroplated layers, small samples. Gradient measurement of nitride layer, forest carbon layer and quench hardened layer.

Micro Star 2000 Inc. will ensure compliance with National Standards for all Hardness Testers sold, ESA Compliance and Crtification.

Specifications:
Model: MicoVicky HV1010AOrder No.: 95 65 00
Numerical input:Auto
Lens and Indenter Switch:Auto Turret
Loading Force N:0.098,0.246,0.49,,0.98,1.96,2.94,4.90,9.80
Loading Force gf:10,25,50,100,200,300,500,1000
Dwell Time:1-60s adjustable
Loading Control:Automatic
Magnification:100x/40x(500x customizable)
Minimum measurement unit:0.025 micron
Analogue X-Y Anvil:Size: 100x100mm Travel: 25mmx25mm
Max Height of sample:90mm
Throat depth:120mm
Dimensions:(LxWxH)425x245x530mm
Packing Dimensions:500x490x720mm
Net Weight:55Kg
Gross Weight:70 Kg
Certified and calibrated to:ASTM Standard E92
Standard delivery:
Product:Product:Product:
Vickers Indenter10x EyepieceAnti-dust cover
HV Test Block 700-800HV1Objectives 10xAccsessories box
HV Test Block 400-500HV2Objectives 40xPower Cable
Flat ClampX-Y AnvilFilament Clamp
Adjusting screwScrew DriverThin piece Clamp
Optional Accessories:
Product:Product:Product:
Video Measuring EyepieceIrregular Clamping TableVickers Measuring Software
Digital MicrometerLCD MonitorUSB CMOS Camera
