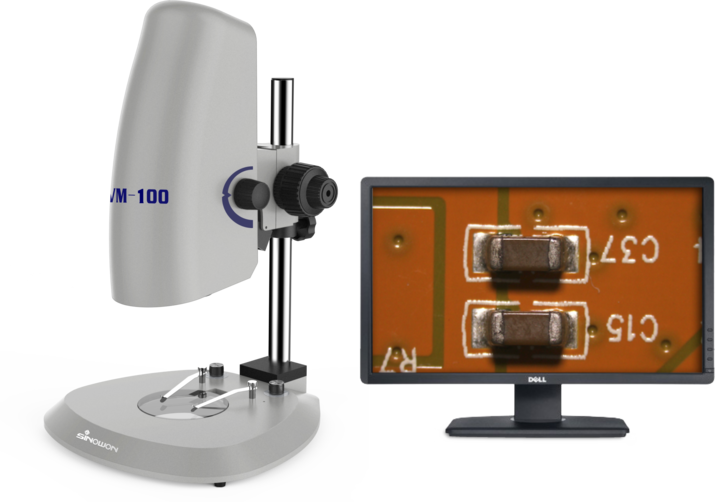

VM-100 Low Magification Video Microscope
Click to Enlarge

The VM-100 is a Low Magnification Video Microscope with Photo, Video and Measurement capabilities with high definition continues zoom lens. Easy and fast to switch objective magnification. A perfect focus and sharp image is ensured due to a coarse and fine focusing system that ensures a clear image. Illumination can be controlled with adjustable LED Potientiometer.

The build in HD sensor and VGA integrated Camera can connect with the monitor and produce or record a video image, or with the use of the SD card a picture.

Installation is easy due to the external interface 12V power supply and USB/VGA video output. The optional mobile control capabilities, ensure precision measurements.

Application: Video Microscopes are widely used in observing translucent or opaque material in electronics, metallurgy, chemical and instrumentation industry. Video Microscopy is also suitable for Medical, Agriculture, Forestry, Academic or Scientific Research.

VM-100 Video Microscope Order No.: 91 50 10
Specifications:
Electronic Magnification:8X-206X(16:9 21.5 in Monitor)
0.7X - 4.5X zoom lens
Optical Magnification:Zoom ratio 6.5:1
0.5X C-mount Camera Adapter
2 million pixel (1920*1080)
Camera Parameters:Image Size:1/2.86in. Frames per second: 30fps
White Balance; Brightness Control; Digital Noise Reduction
Photograph and Video Record
VGA/USB Output, SD Card Storage
Camera Function:OSD: Comprehensive digital UI design, Wireless USB 2.0 Mouse Operation
Cross Line; Picture Frozen 10X Digital Magnification
Measuring Function:Optional PC System and measuring software can measure image in the field view
Illumination:Bottom: Adjustable LED Illumination
Surface: Adjustable LED Illumination
Z-axis Travel : 150mm
Microscope Stand:Coarse/Fine Lifting System
Electrical Parameters:AC90-240 V, 50-60Hz
Dimensions:290*280*400mm
Gross/Net Weight:7.0/4.7Kg
