Ultrasonic Tester Test Stands

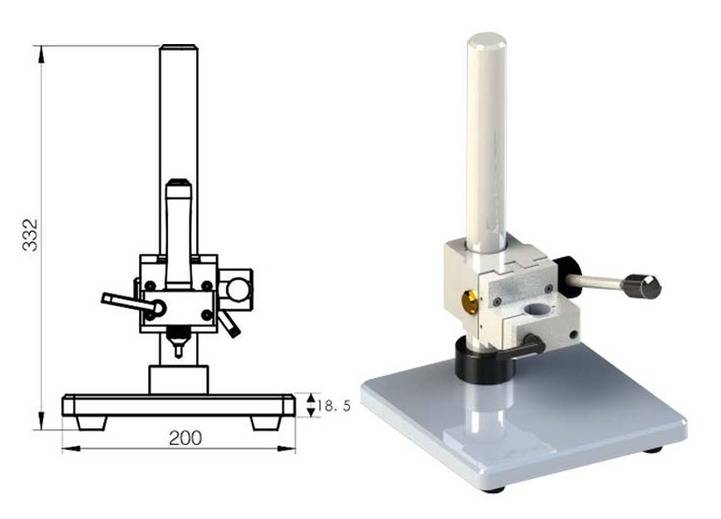

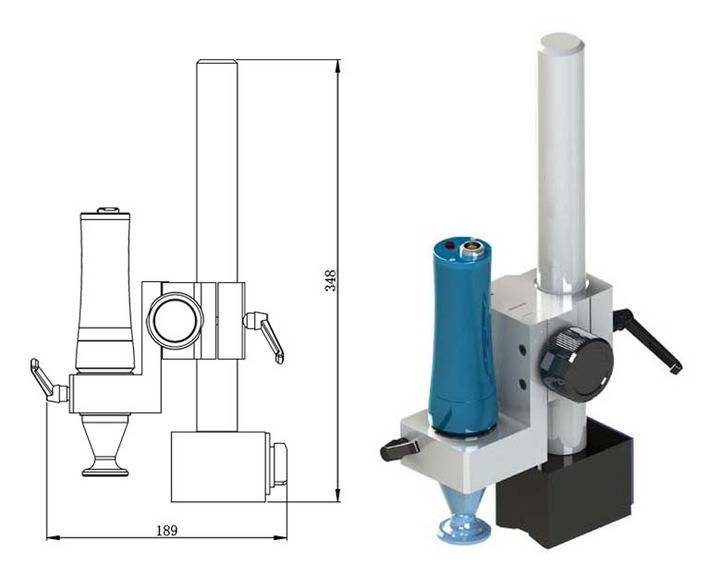

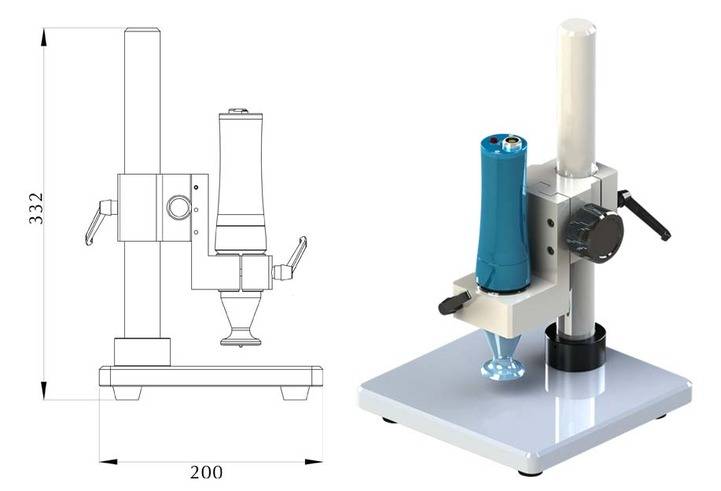

The MU-100, MU-300 and MU-400 Test Stand is an auxiliary device and mainly used to improve calibration accuracy.

The Test Stand will eliminate operator error and more stable testing results are obtained.

Specifications:

Model:	MU-100	MU-200	MU-300	MU-400
Order No.:	75 15 05	75 16 06	75 14 05	75 17 05
Material:	Stainless Steel	Magnesium aluminum alloy	Aluminum	Stainless Steel
Weight:	8.8Kg	1.6Kg	4.5Kg	9.5Kg
Dimensions: (LxWxH)	200x200x332mm	205x142x284mm	200x120x348mm	200x200x332mm
Packaging Dimension:	320x320x440mm	405x340x580mm	398x310x540mm	398x398x530mm

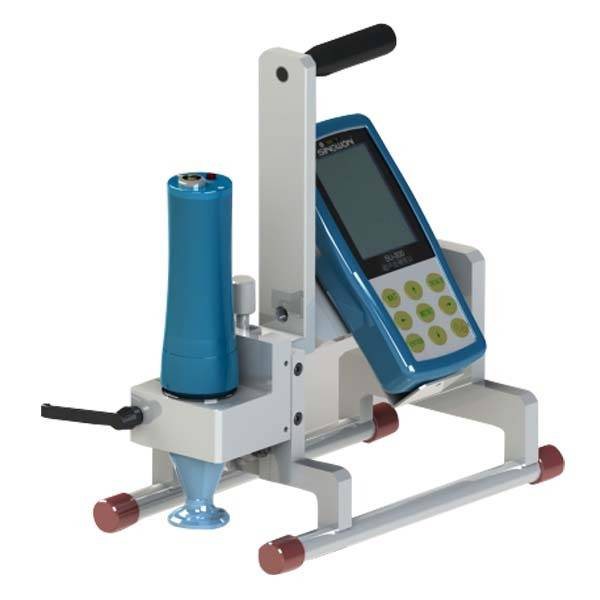

Stand Application:	Manual Probe	Motorized Probe for Roller Material	Motorized Probe Magnet	Motorized Probe
