MicroStar Digital Macro Vicky Series HV10,HV30,HV50 - Bluetooth
Click to Enlarge

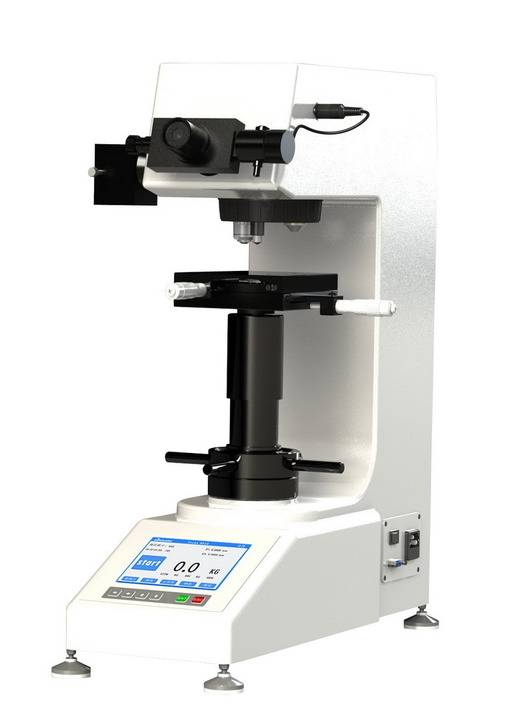

MicroStar HV10/Vicky HV30/Vicky HV50/Vicky Color Touch Screen Digital Macro Hardness Tester Features; ►Close loop, Auto, Dwell and Unloading System. ►Color touch screen. ►Objectives switched by auto turret. ►Indenter and Force System can be switched manually. ►One touch operation of diagonal line by high resolution measurement / observation. ►Objectives and built in length high definition digital Eyepiece. ► Equipped with Bluetooth connection. ►MV series Vickers Software recommended.

Applications: Testing very thin materials like foils, thin pieces, coating layers etc. Measurement depth of case hardening samples. Meets the requirements of ASTM-E92, ISO6507, JSZ2245.

Power Requirements: 110V 60Hz

Micro Star 2000 Inc. will ensure compliance with National Standards for all Hardness Testers sold, ESA Compliance and Certification.

 Filament Clamp            Flat Precision Clamp





X-Y Stage Anvil              Thin Piece Clamp

Hardness Test Blocks and Accessories

Micro Vickers Image Analysing System

Hardness Conversion Charts





Specifications:
Order No.:Vicky HV10 No.: 30 08 02Vicky HV30 No.: 30 08 03Vicky HV50 No.: 30 08 04
Loading Force N2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.0, 98.04.9, 9.8, 24.5, 29.4, 49.0, 98.0, 196, 2949.8, 19.6, 29.4, 49.0, 98.0, 196, 294, 490
Loading Force Kgf0.3, 0.5, 1, 2, 2,5, 3, 5, 100.5, 1, 2.5, 3, 5, 10, 20, 301, 2, 3, 5, 10, 20, 30, 50
ModelVicky HV10/ HV30/ HV50
Lens & Indenter SwitchAuto Turret
Data TransferSupport Bluetooth Printing
Hardness Resolution1HV
Measuring Range8HV - 2967HV
Load ControlAutomatic( Loading, Dwell and Unloading)
Microscope MagnificationObservation: 10x/40x; Measurement: 10x/40x
Hardness ConversionHRC,HB,HK etc.
Eyepiece10x Digital Eyepiece
Dwell TimeAdjustable 1 - 60s
DisplayEasy to read 5.2inch Touch Screen Resolution 640x480
IlluminationAdjustable halogen lamp (LED Illumination optional)
Sample Max height150mm
Throat depth125mm
DimensionsH535 x W190 x L585mm
Gross/Net Weight47kg/43kg
Closed loop force application
Certified and calibrated to ASTM standards and ready to use
Standard Delivery:
Vickers Indenter
10x Objective
10x Digital Eyepiece
X-Y Stage Anvil (HV 10)
Operation and maintenance manual
Power Cable
Accessory Box
Level Screw
Anti-dust Cover
Optional Accessories:
Item
Vickers Software MV-200S
LCD Video Monitor 6.8 in
Irregular Clamp
Flat Precision Clamp
Knoop Indenter
Adapter C-Mount
Micrometer 25mm Digital
Eyepiece 16X
Filament Clamp
Thin piece Clamp
USB Camera
Standard Hardness Blocks
Wireless Mini Printer
X-Y Stage Anvil (optional HV30, HV50)
