Vertical Pressure Clamping
Click to Enlarge

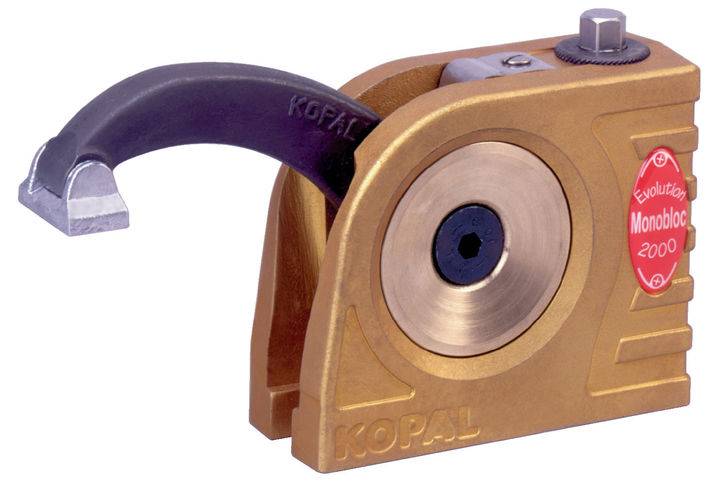

With neither riser block nor adjusting required, the system allows a continuous adaptation of the clamping height whilst retaining the clamping force with the simple turn of the clamping key. Adaptable to all types of machine-tool tablles, electro-erosion machines and modular or press T-slot tables(model dependant). The clamps are "monobloc" types, which ensure stable, robust and rapid assembly for setting up and dismantling with a clamping force upto 50000N.

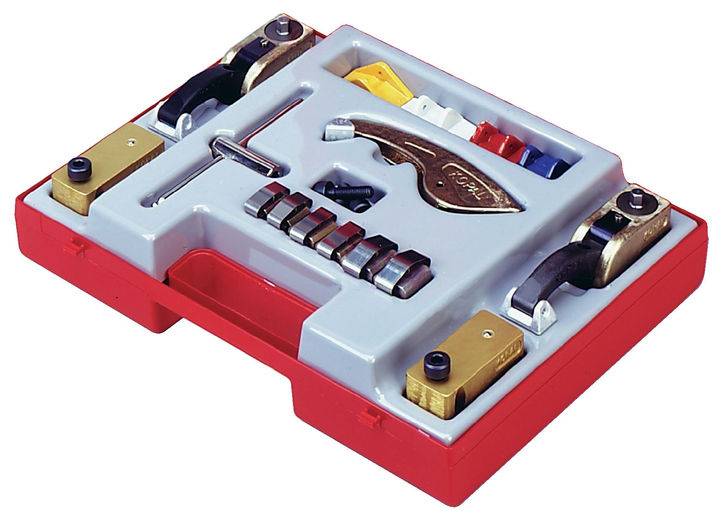

Pocolo Set Part No.: 56 00 25

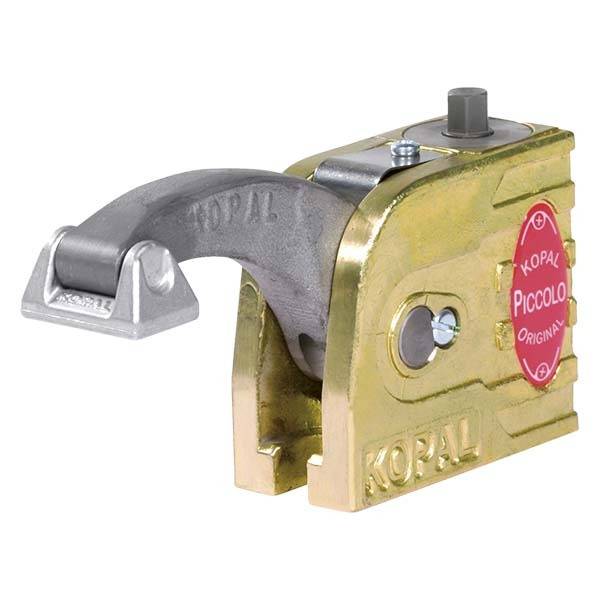

2 Piccolo

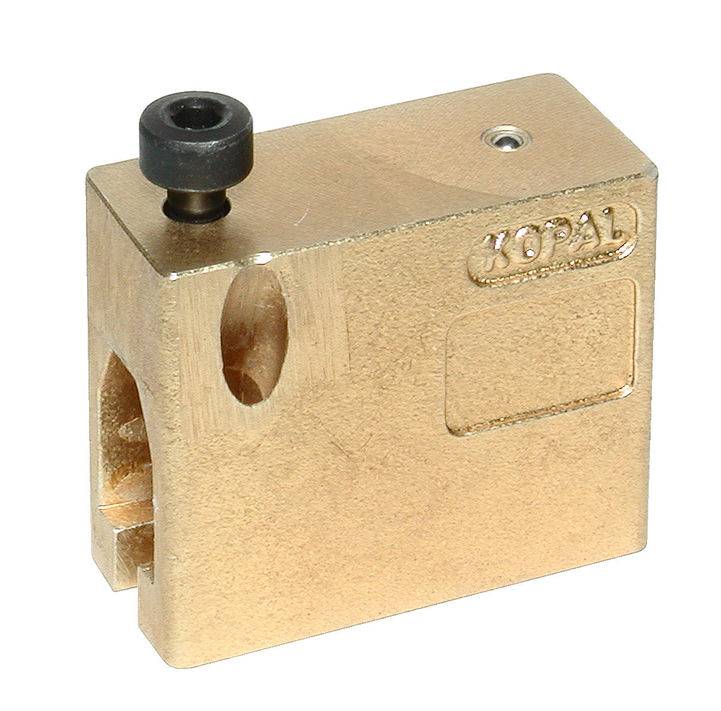

2 x 60 mm riser blocks

1 clamping key

1 extra long arm

1 set of 4 different shaped swivel shoes

4 x M 8 screws

6 M 8 T-nuts with spring

(2 for each 12, 14 & 16 mm slot)



Part No: 52 00 14





Part No: 56 03 50




Part No: 56 03 51



Part No: 49 00 09



Part No: 56 50 02
